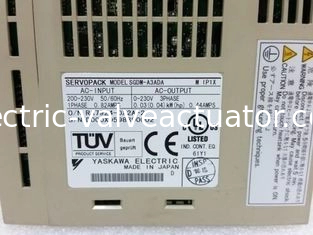

SGDM-A3ADA Servopack Yaskawa AC 200-230V Input 1PH 100 200VAC 850w

Name: SGDM-A3ADA Servopack Yaskawa AC 200-230V Input 1PH 100 200VAC 850w
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: SGDM-A3ADA
Price: 210.00 USD
Availability: InStock

Nombre De La Marca:	Yaskawa
Número De Modelo:	SGDM-A3ADA
Cuota De Producción:	1
Precio:	Negotiations

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Japón

Poder - Calificación:

850W

Voltaje - Clasificado:

100, 200 VAC

Rpm:

3000 rpm

Detalles de empaquetado:

Nueva caja original

Resaltar:

Yaskawa AC servopack 200-230V

Yaskawa servopack 850w with warranty

AC servopack 1PH 100-200VAC

Descripción del producto

SGDM-A3ADA Servopack Yaskawa AC 200-230V Input 1PH 100 200VAC 850w

SGDM-A3ADA Yaskawa Industrial Servo Drives Electric ServoPack AC 200-230V Input 1PH SERVOPACK

SGDM-A3ADA Description

The Yaskawa SGDM-A3ADA is a compact and versatile servo drive designed for precise motion control applications. It is part of Yaskawa's SGDM series and is engineered to deliver high performance, flexibility, and reliability. This model supports multiple control modes--speed, torque, and position--making it suitable for a wide range of industrial automation tasks, from semiconductor manufacturing equipment to machine tools and high-speed precision machine. It features a built-in parameter setting function, allowing for easy configuration directly from the drive unit without additional tools.

SGDM-A3ADA Features

Multi-Control Modes: Offers seamless switching between torque, position, and speed control modes via parameter settings, providing adaptability for various application requirements.
High-Speed Communication: Supports a high transmission speed of up to 100 Mbps with a configurable communication cycle (125 μs to 4 ms). This enables high-speed control for up to 62 stations on a network, significantly reducing wiring costs and complexity.
Advanced Performance: Designed to unleash the full potential of machinery with high-speed responsiveness and precision control, aiding in shortening work cycles and improving positioning accuracy.
Built-in Safety (Optional): Can be equipped with a safety module that complies with international standards like IEC 61800-5-2 and EN ISO 13849-1. This module provides safety functions such as Safe Torque Off (STO), Safe Stop 1 (SS1), Safe Stop 2 (SS2), and Safely Limited Speed (SLS), simplifying system design and enhancing operational safety.
Space-Efficient Design: The drive unit is compact, and when combined with a serial encoder, it reduces the number of encoder wiring lines by half compared to previous products, contributing to a cleaner and more efficient control cabinet layout.

SGDM-A3ADA Material and Application

The SGDM-A3ADA is constructed with high-quality electrical components mounted on a printed circuit board (PCB), housed in a metal chassis typical of industrial-grade drives. Its robust construction is designed for reliable operation in demanding industrial environments.

Primary Applications:

Semiconductor manufacturing equipment
Liquid crystal manufacturing apparatus
Electronic component mounting machines
Machine tools (for feed mechanisms)
General industrial machinery
PCB drilling machines
Pick-and-place machines (Surface Mount Technology - SMT)

SGDM-A3ADA Important Parameters

Key technical specifications for the Yaskawa SGDM-A3ADA servo drive are summarized in the table below.

Parameter Category	Specification
Rated/Max Output Power	30 W
Main Circuit Power Supply	Single-phase AC 200 V to 230 V, +10% to -15% (50/60 Hz)
Control Circuit Power Supply	Single-phase AC 200 V to 230 V, +10% to -15% (50/60 Hz)
Control Method	IGBT PWM control, sinusoidal current drive method
Control Modes	Speed control, Torque control, Position control
Continuous Output Current	0.44 A (RMS)
Maximum Output Current	1.3 A (RMS)
Maximum Applicable Motor Capacity	0.05 kW (for 100V motors); Matches 30W rating for 200V
Feedback System	Serial encoder (incremental or absolute)
Interface Type	Analog voltage, pulse train command (for rotary servomotors)
Design Sequence	A
Hardware Specification	Back-mounted type (standard), slot type is optional
Approx. Mass	0.8 kg
Operating Environment Temperature	0 to 40 °C (for associated motors)
