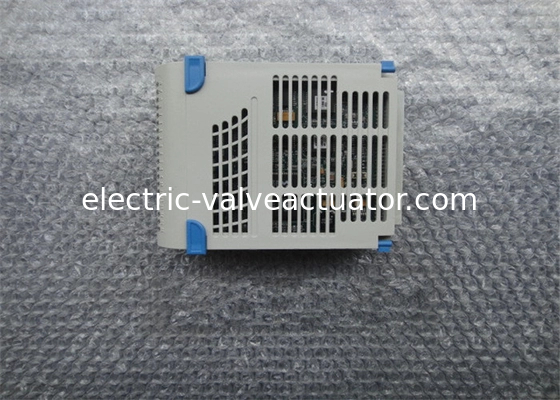

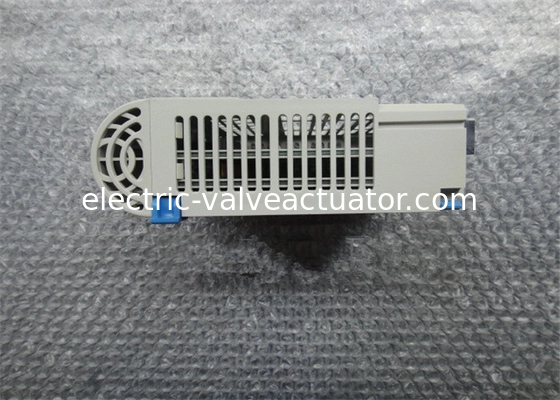

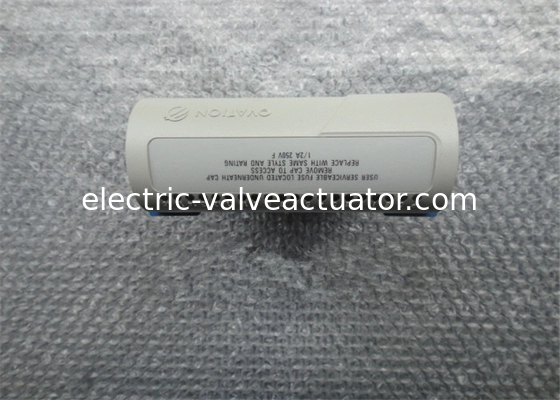

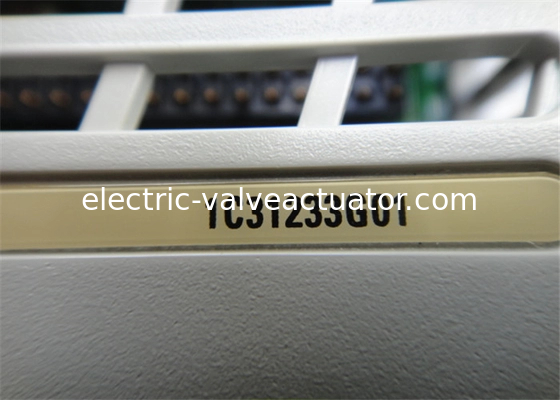

Westinghouse 1C31233G01 Remote Input Output Module Sequence Of Events 24/48VDC Single Ended

Name: Westinghouse 1C31233G01 Remote Input Output Module Sequence Of Events 24/48VDC Single Ended
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: 1C31233G01
Price: 210.00 USD
Availability: InStock

Nombre De La Marca:	Westinghouse
Número De Modelo:	1C31233G01
Cuota De Producción:	1
Precio:	Negotiations

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Reino Unido/Tailandia

Detalles de empaquetado:

Nueva caja original

Resaltar:

Westinghouse remote I/O module

24/48VDC sequence of events module

single-ended ESP controller module

Descripción del producto

Westinghouse 1C31233G01 Remote Input Output Module Sequence Of Events 24/48VDC Single Ended

Westinghouse 1C31233G01 Digital I O Module Sequence Of Events 24/48VDC Single ended Electronic Module

Quick detail:

Brand: Westinghouse
Model: 1C31233G01
Country of origin: UK / Thailand
Condition: New
Category: Redundant Power Supply Module
Type: Analog Input Electronic Module

Item specifics:

Brand:	WESTINGHOUSE
Model:	1C31233G01
Shipping Weight:	2.45 lbs
Shipping Dimensions:	16.75 x 5.00 x 3.50 in
SKU:	D645825 (GTK)
Category:	PCB Circuit Boards

Ovation Local I/O

The Ovation controller can directly support up to 16 independently driven branches of Ovation I/O. For local I/O, all modules reside in up to four standard cabinets, which are placed side by side. All field wiring leads to these cabinets.

Ovation Local I/O Specifications

Max branches per controller	16 branches
Max I/O modules per branch	8 modules
Max I/O modules per controller	128 modules
Max local I/O bus length	20m (60ft)

Ovation Redundant I/O

Redundant Ovation I/O modules are installed in the same fashion as standard Ovation I/O modules, but are associated in pairs located in adjacent branches.

The module pairs exchange health, status and I/O information via their personality module interconnections. This approach allows the user to take advantage of I/O redundancy by wiring the field terminations into a single terminal block on the primary I/O base, with no special control strategy configuration required.

Redundancy is applied at I/O configuration time, and during normal operation, the Ovation system automatically reads and compares the I/O channels of both modules and determines which value to use. When a fault is detected the system automatically switches to the backup module thus increasing reliability and availability of the process inputs or outputs.

Refer to the Ovation Redundant I/O Overview data sheet for complete details.

Remote I/O Specifications

Max. remote nodes	8 nodes
Max. I/O modules per node	64 (8 branches with 8 modules for each branch)
Max. I/O modules per controller	512 modules
Remote I/O bus configuration	10 BASE-FL Ethernet physical layer with a proprietary protocol
Remote I/O cycle time	<100 microseconds (no repeaters)
Standard remote communications media	Fiber optic
Maximum cable length for 850 nm fiber-optic media	4 km. Distances of 6 km can be achieved with repeaters (up to two repeaters)

Packaging & Shipping

We will ship the items within 3 working days after the payment is reached.
All the goods will be tested before shipment.
Packing in professional anti-static bag.
We can ship to you by DHL/TNT/UPS/EMS/Fedex... Pls contact us directly and we will ship as your requirement.
