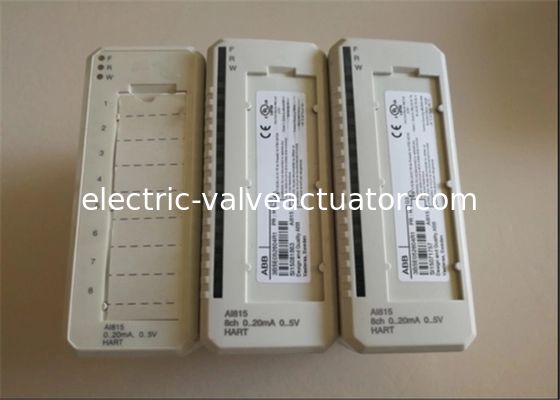

AI815 3BSE052604R1 I/O Modules - System 800xA hardware selector Digital I O Module

Name: AI815 3BSE052604R1 I/O Modules - System 800xA hardware selector Digital I O Module
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: AI815
Price: 210.00 USD
Availability: InStock

Nombre De La Marca:	ABB
Número De Modelo:	AI815
Cuota De Producción:	1
Precio:	Negotiations

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

India (IN)

Especificación de la señal:

0..20 mA, 4..20 mA, 0..5 V, 1..5 V

Bajo/por encima del rango:

0 / +15%

Filtro de entrada (tiempo de subida 0-90%):

290 ms

Disipación de potencia:

3.5W

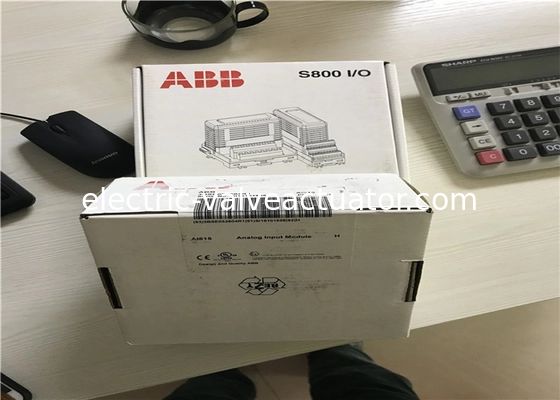

Detalles de empaquetado:

Nueva caja original

Resaltar:

System 800xA Digital I/O Module

AI815 I/O Module with warranty

ESP Controller hardware selector module

Descripción del producto

AI815 3BSE052604R1 I/O Modules - System 800xA hardware selector Digital I/O Module

General Information

Type	Analog Input
Signal specification	0..20 mA, 4..20 mA, 0..5 V, 1..5 V

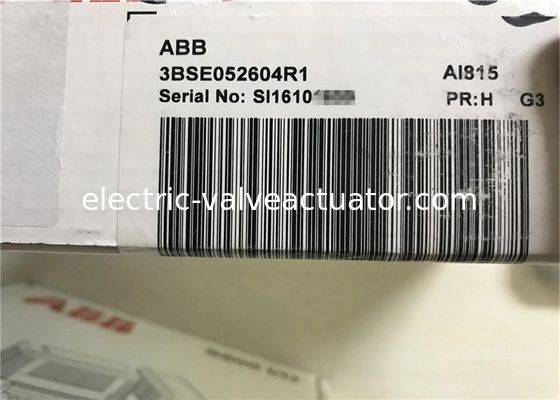

Article number	3BSE052604R1
Number of channels	8
Signal type	Unipolar single ended
HART	Yes
SOE	No
Redundancy	No
High integrity	No
Intrinsic safety	No
Mechanics	S800

Detailed Specifications

Resolution	12 bit
Input impedance	10 MΩ (voltage input) 250 Ω (current input incl. PTC)
Isolation	Groupwise isolated from ground
Under/over range	0 / +15%
Error	Max. 0.1%
Temperature drift	Max. 50 ppm/°C
Input filter (rise time 0-90%)	290 ms
Update cycle time	10 ms
Current limiting	Built in current limited transmitter power
Maximum field cable length	600 meters (656 yards)
NMRR, 50Hz, 60Hz	> 40 dB
Rated insulation voltage	50 V
Dielectric test voltage	500 V a.c.
Power dissipation	3.5 W
Current consumption +5 V Modulebus	100 mA
Current consumption +24 V Modulebus	Max. 265 mA (22 mA + 1.32 * transmitter current)
Current consumption +24 V external	50 mA

Diagnostics

Front LED's	F(ault), R(un), W(arning)
Supervision	Module error, if: analog read back, reference voltage, internal power supply, checksum, watchdog and memory error External channel error, if: external power supply low, transmitter power error
Status indication of supervision	Module Error, Module Warning, Channel error

Environment and Certification

CE mark	Yes
Electrical safety	IEC 61131-2, UL 508
Hazardous Location	C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2
Marine certification	BV, DNV-GL, LR
Protection rating	IP20 according to IEC60529
Corrosive atmosphere ISA-S71.04	G3
Climatic operating conditions	0 to +55 °C (Storage -40 to +70 °C), RH=5 to 95 % no condensation, IEC/EN 61131-2
Pollution degree	Degree 2, IEC 60664-1
Mechanical operating conditions	IEC/EN 61131-2
EMC	EN 61000-6-4, EN 61000-6-2
Overvoltage categories	IEC/EN60664-1, EN 50178
Equipment class	Class I according to IEC 61140; (earth protected)
Max ambient temperature	55 °C (131 °F), for vertical mounting in compact MTU 40 °C (104 °F)
RoHS compliance	EN 50581:2012
WEEE compliance	DIRECTIVE/2012/19/EU
