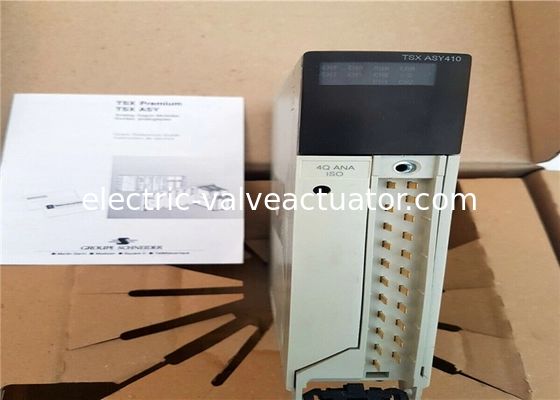

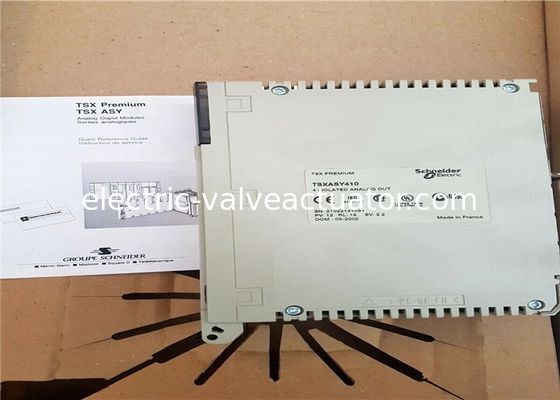

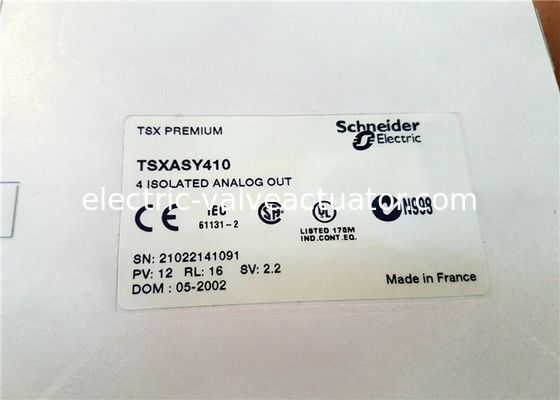

Schneider Electric TSXASY410 Analog output module Modicon Premium 4 O multirange

Name: Schneider Electric TSXASY410 Analog output module Modicon Premium 4 O multirange
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: TSXASY410
Price: 210.00 USD
Availability: InStock

Nombre De La Marca:	Schneider
Número De Modelo:	TSXASY410
Cuota De Producción:	1
Precio:	Negotiations

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Francia

Número de la salida:

Tiempo de conversión:

ms 2,5

Detalles de empaquetado:

Nueva caja original

Resaltar:

Schneider Electric analog output module

Modicon Premium multirange module

TSXASY410 analog output module

Descripción del producto

Schneider Electric TSXASY410 Analog Output Module Modicon Premium 4 O Multirange

Key Attributes

Output Number	4
Conversion Time	2.5 ms

Technical Specifications

Main Range of Product	Modicon Premium Automation platform
Product Type	Analog output module
Analog Output Type	Current: 0...20 mA Current: 4...20 mA Voltage: +/- 10 V
Analog/Digital Conversion	11 bits + sign
Measurement Resolution	10.25 µA 0...20 mA 10.25 µA 4...20 mA 5.12 mV +/- 10 V
Electrical Connection	Screw terminal block
Measurement Error	0.45% of full scale +/- 10 V 25°C 0.52% of full scale 0...20 mA 25°C 0.52% of full scale 4...20 mA 25°C 0.75% of full scale +/- 10 V 0...60°C 0.98% of full scale 0...20 mA 0...60°C 0.98% of full scale 4...20 mA 0...60°C
Isolation	Between channels: 1500 Vrms Between channels and bus: 1500 Vrms Between channels and ground: 500 V
Protection Type	Overload protection Short-circuit protection
Output Voltage Limits	≤ 30 V
Load Impedance	< 600 Ohm 0...20 mA < 600 Ohm 4...20 mA > 1000 Ohm +/- 10 V
Maximum Load Inductance	300 µH
Maximum Load Capacitance	0.1 µF
Current Consumption	900 mA at 5 V DC
Module Format	Standard
Net Weight	0.35 kg

Environmental Specifications

Operating Temperature	0...60°C
Storage Temperature	-25...70°C
Relative Humidity	Operation: 10...95% without condensation Storage: 5...95% without condensation
Operating Altitude	0...2000 m
IP Degree of Protection	IP20
Pollution Degree	2

Certifications & Standards

Environment Standards	CSA C22.2 No 213 Class I Division 2 Group A/B/C/D CSA C22.2 No 142 92/31/EEC 89/336/EEC 93/68/EEC IEC 61131-2 73/23/EEC UL 508
Product Certifications	GL ABS RINA DNV RMRS LR BV
Marking	CE
