140CPU65160S Modicon Quantum PLC / CPU Single Slot 80486 Processor With Mathematical

Nombre De La Marca:	Schneider
Número De Modelo:	140CPU65150S
Cuota De Producción:	1
Precio:	Negotiations

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Francia

Tipo:

Plataforma de automatización cuántica de Modicon

Tipo de producto o componente:

Procesador de la unidad

Detalles de empaquetado:

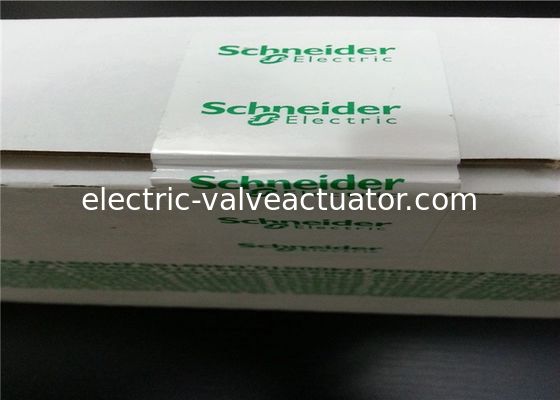

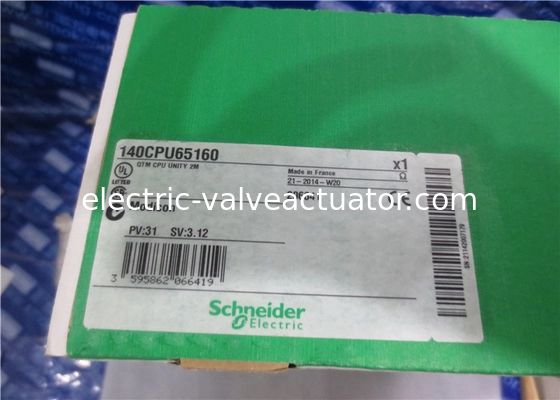

Nueva caja original

Resaltar:

Modicon Quantum PLC CPU

80486 processor PLC

single slot PLC with warranty

Descripción del producto

140CPU65160S Modicon Quantum PLC / CPU Single Slot 80486 Processor With Mathematical

Product Attributes

Type	Modicon Quantum Automation Platform
Product Or Component Type	Unity Processor

Product Description

140CPU65160S Modicon Quantum PLC / CPU Single Slot 80486 Processor With Mathematical

Quick Details

SCHNEIDER ELECTRIC
MODICON
140CPU65160S
UNITY PROCESSOR
QUANTUM
1024KB
266MHZ
AVAILABLE
REBUILT SURPLUS
NEVER USED SURPLUS
Weight: 2kg

New one with one year warranty and used one with six months warranty

More Information

Unity Processor Modicon Quantum - 1024 Kb - 266Mhz

Quantum | 140CPU65160S | Modicon | 140 CPU 651 60S | Processor UNITY W/ 2048/7168K Ethernet

The 140 CPU 651 50 S, 140 CPU 651 60S and 140 CPU 652 60S processors have the following on the front panel: 4 An RJ45 connector for the connection to the Modbus bus. 5 A type B female USB connector for connecting the programming PC 6 A 9-way female SUB-D connector for the connection to the Modbus Plus network 7 Two slots for PCMCIA memory extension cards 8 Two LEDs marked COM and ERR 9 An RJ45 connector for the connection to the Ethernet network.

Specifications

Manufacturer:	Modicon Quantum
Series:	Quantum CPUs
Weight:	2 lb
Product or component:	Unity processor
Clock frequency:	266 MHz
Number of slots:	10 \| 16 \| 2 \| 4 \| 6
Number of racks:	2 - local rack(s)
Number of distributed I/O station:	63 station(s) - 1 rack(s) - 3 distributed network(s)
Number of remote I/O station:	31 - 2 remote rack(s)
Discrete I/O number:	8000 inputs, 8000 outputs - distributed - per network \| 31744 inputs, 31744 outputs - remote \| Unlimited (26 slots max) - local
Analogue I/O number:	Unlimited (26 slots max) - local \| 500 inputs, 500 outputs - distributed - per network \| 1984 inputs,1984 outputs - remote
Application specific I/O:	Accurate time stamping \| Counter \| High-speed interrupt inputs \| Serial link
Number of optional modules:	6 (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max)
Maximum number of connections:	Unlimited (AS-Interface) - local \| 6 (Profibus DP) - local \| 6 (Modbus Plus) - local \| 6 (Ethernet TCP/IP) - local \| 4 (AS-Interface) - remote \| 2 (AS-Interface) - distributed \| 1 (USB) \| 1 (Modbus) - RS232/485 Modbus/ASCII
Integrated connection type:	1 Ethernet TCP/IP \| 1 Modbus \| 1 Modbus Plus \| 1 USB
Checks:	Process control
Memory description:	Expandable 8 MB - file storage with PCMCIA card \| Expandable 7168 kB - program with PCMCIA card \| Internal RAM 768 kB
Switch function:	Key switch memory port on/off
Application structure:	4 auxiliary tasks \| 32 timer interrupt tasks \| 128 interrupt tasks \| 128 I/O interrupt tasks \| 1 periodic fast task \| 1 cyclic/periodic master task
Execution time per instruction:	0.48...0.56 µs floating points \| 0.0525...0.075 µs Boolean \| 0.045...0.06 µs on word \| 0.045...0.06 µs on fixed-point arithmetic
Execution time for 1 K instruction:	9.91 65 % Boolean and 35 % numerical \| 10.28 100 % Boolean
System overhead:	1 ms - master task \| 0.2 ms - fast task
Bus current requirement:	2160 mA
Local signalling:	1 LED red for Ethernet collision \| 1 LED green for Ethernet activity (COM)
Electrical connection:	1 female connector, connector type: SUB-D 9 for connecting to the Modbus Plus network \| 1 connector, connector type: RJ45 for connecting Modbus bus \| 1 connector, connector type: RJ45 for connecting Ethernet network \| 1 connector, connector type: MT-RJ (fiber optic) for interconnecting primary and secondary PLCs (hot standby architecture)
