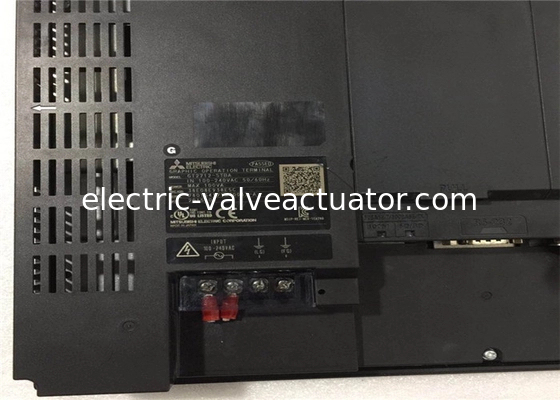

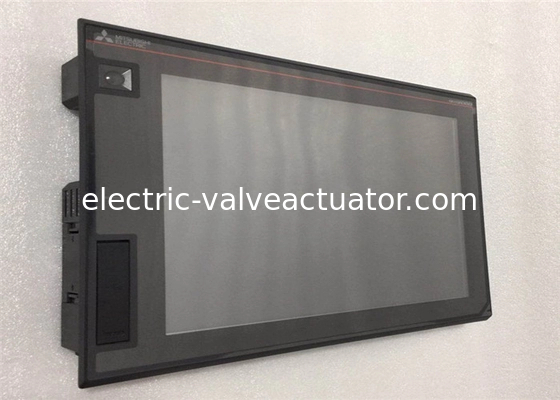

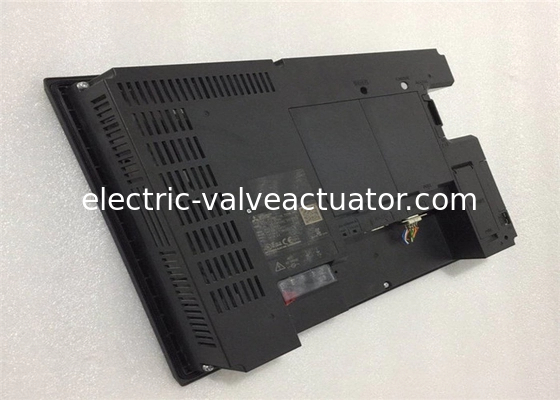

Mitsubishi GT2715-XTBA HMI Touch Screen 100 to 240 V AC 50/60Hz ±5%

Mitsubishi GT2715-XTBA HMI Touch Screen 100 to 240 V AC 50/60Hz ±5%

Detailed Product Description

• GT27 15 INCH XVGA COLOR TOUCHSCREEN AC (GT2715XTBA)
• Manufacturer: Mitsubishi
• Series: GOT2000

Quick Detail

• Manufacturer : Mitsubishi Electric

• GT2715-XTBA

• Model : GT2715-XTBA

• Screen size : 15" XGA

• Display color : TFT color - 65536 colors

• Panel color : Black

• Power : 100 to 240 V AC

• Remarks : Multimedia & Video/RGB compatible Multi-touch compatible

• Model: Screen size Display section Display color Panel color Power Remarks

• GT2715 GT2715-XTBA 15" XGA TFT color 65536 colors Black 100 to 240 V AC Multimedia & Video/RGB compatible Multi-touch compatible

• Model Number : GT2715-XTBA

• Input Power Supply Voltage : 100 to 240VAC (+10%, -15%)

• Input Power Supply Frequency : 50/60Hz ±5%

• Power Consumption - Maximum Load : 51W or less

• Power Consumption - Stand Alone : 25W

• Power Consumption - Stand Alone w/ Backlight Off : 10W

• Inrush Current : 40A or less (3ms, ambient temperature 25°C, maximum load)

• Permissible Instantaneous Failure Time : Within 20ms (100VAC or more)

• Noise Resistance : Noise voltage 1500Vp-p, noise width 1µs by noise simulator with noise frequency 25 to 60Hz

• Withstand Voltage : 1500VAC for 1 minute between power supply terminal and ground

• Insulation Resistance : 10MO or higher with an insulation resistance tester (500VDC between power supply terminal and ground)

• Applicable Wire Size : 0.75 to 2 [mm²]

• Clamp Terminal Clamp terminals for M3 screw RAV1.25-3, V2-S3.3, V2-N3A, FV2-N3A

• Tightening Torque (Terminal Block’s Terminal Screws) 0.5 to 0.8 [N·m]

• Model Number : GT2715-XTBAGT2715-XTBD

• Type : TFT color LCD

• Screen Size : 15"

• Resolution (Dots) : 1024 x 768 XGA

• Display Size (W x H) mm : 304.1 x 228.1

• Number of Characters : 16-dot standard font: 64 chars. x 48 lines (2-byte) 12-dot standard font: 85 chars. x 64 lines (2-byte)

• Display Colors : 65536 colors

• Intensity Adjustment : 32-level adjustment

• Backlight Type : LED (not replaceable)

• Backlight Life : Approx. 60000 hours or more (Time for display intensity reaches 50% at ambient temperature of 25°C) (*4)

• Touch Panel : Type : Analog resistive film

• Touch Panel :Key Size (Dots) : Minimum 2 x 2 dots (per key) (*7)

• Touch Panel : Simultaneous Press : Maximum 2 points

• Touch Panel : Life : 1 million times or more (operating force 0.98N or less)

• Panel Color : Black

• Human Sensor Detection Distance (m) : 1m

• Human Sensor Detection Temperature : Temperature difference between human body and ambient air: 4°C or higher

• Memory User Memory Capacity : Memory for storage (ROM): 57MB, Memory for operation (RAM): 128MB

• Memory Life (No. of Writings) : 100000 times

• Internal Clock Accuracy : ±90 sec/month (ambient temperature 25°C)

• Battery Type : GT11-50BAT lithium battery

• Battery Life : Approx. 5 years (ambient temperature 25°C)

• Built-in Interface RS-232 : 1ch Transmission speed: 115200/57600/38400/19200/9600/4800bps Connector shape: D-sub 9-pin (male)

• Built-in Interface RS-422/485 : 1ch Transmission speed: 115200/57600/38400/19200/9600/4800bps Connector shape: D-sub 9-pin (female)

• Built-in Interface Ethernet : 1ch Data transfer method: 10BASE-T/100BASE-TX Connector shape: RJ-45 (modular jack)

• Built-in Interface USB (Host) : 2ch (front face/rear face)

• Built-in Interface : Maximum transfer speed: High-Speed 480Mbps Connector shape: USB-A

• Built-in Interface USB (Device) : 1ch (front face)

• Built-in Interface : Maximum transfer speed: High-Speed 480Mbps Connector shape: USB Mini-B

• Built-in Interface SD Card : 1ch SDHC compliant (maximum 32GB)

• Built-in Interface Extension Interface (*6) : For communication unit/option unit mounting

• Built-in Interface Auxiliary Extension I/F : For option unit mounting

• Built-in Interface Side Interface : For communication unit mounting

• Buzzer Output : Single tone (tone, tone length adjustable)

• Power LED : Emission color: 2 colors (blue, orange)

• Protective Construction : Front: IP67F (*5,*8) In control panel: IP2X

• External Dimensions (W x H x D) mm : 397 x 300 x 60

• Panel Cutout (W x H) mm : 383.5 x 282.5

• Weight (kg) Excludes Mounting Brackets : 4.5

• Applicable Software Package : GT Works3 Version1.112S or later

• Shipping Weight : 5 Kg

Features

• Multi-touch, pinch-zoom capability
• Built-in Ethernet, RS232 & RS422/485
• SD memory card slot
• Operator authentication and logging
• Wide choice of drivers for Mitsubishi and other manufacturers controllers
• All versions have 65K colour screens
• Oil resistant protective sheets available
