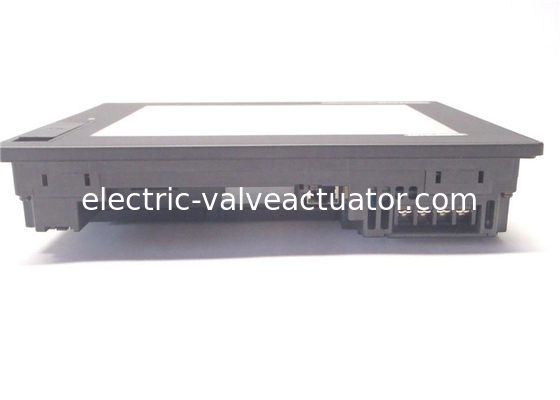

Mitsubishi GOT 1000 GT1665M-STBD 8.4" 800 x 600 24V DC HMI Touch Screen

Name: Mitsubishi GOT 1000 GT1665M-STBD 8.4" 800 x 600 24V DC HMI Touch Screen
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: GT1665M-STBD
Price: 285.00 USD
Availability: InStock

Nombre De La Marca:	Mitsubishi
Número De Modelo:	GT1665M-STBD
Cuota De Producción:	1
Precio:	Negociable
Condiciones De Pago:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Capacidad De Suministro:	En stock

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Japón

Certificación:

Detalles de empaquetado:

Caja nueva y original

Capacidad de la fuente:

En stock

Descripción del producto

Detailed Product Description

Brand:	Mitsubishi	Model Item:	GT1665M-STBD
Plan Of Original:	Japan	Screen Size:	12.1 Type
Resolution:	SVGA: 800 X 600 [dot]	Display Size:	246 (W) X 184.5 (H) [mm]
Operating Ambient Temperature:	0 To 55 ° C	Storage Ambient Temperature:	-20 ° C To 60 ° C
Highlight:	hmi display touch screen , industrial hmi panels

Mitsubishi GOT 1000 GT1665M-STBD 8.4" 800 x 600 24V DC HMI Touch Screen

Detailed Product Description

Manufacturer : Mitsubishi
Product No. : GT1665M-STBD
Product type : GOT 1000 HMI
Display Size : 8.4"
Keyboard : Touch screen
Back Protection : IP20
Front Protection : IP67
Voltage : 24V DC
Communications : RS232, RS422, USB, Ethernet
Internal Memory : 15 MB
Screen : 65536 Colour
Type : TFT
Pixels : 800 x 600
Dimension : 19.0 cm x 24.1 cm x 5.2 cm
Shipping weight : 2 Kg

Product Details

Mitsubishi GOT 8.4 inch 65K COLOR TOUCHSCREEN SVGA TFT DC (GT1665MSTBD)
Manufacturer: Mitsubishi HMIs
Category: GOT1000

Specifications


Display unit	type	8.4", TFT, 65536 colours	10.4", TFT, 65536 colours	12.1", TFT, 65536 colours	15", TFT, 65536 colours
Display unit	resolution (pixel)	STB _: 800x600 VTB_: 640x480		800x 600	1024x 768
Power supply	A types	100–240 V AC
Power supply	D types	24 V DC
Memory capacity		15 MB			15 MB (expandable up to 57 MB)
Memory card		1 (CompactFlash)
Keyboard type		Touch-panel
Function keys		Touch keys
LED indicators		1 (POWER)
Interfaces		Ethernet (TCP/IP), RS232, RS422/485, USB, CF Slot
Multimedia capability		Optional
Real-time clock		Integrated
Network communication possibilities		Ethernet (TCP/IP), CC-Link (IE), Modbus®, RS232, RS422/485, A bus, Q bus, MELSECNET/10/H
Extension interface (communication/option unit)		1 port (max.5 units/4 channels)
IP rating ( front )		IP67 ¹

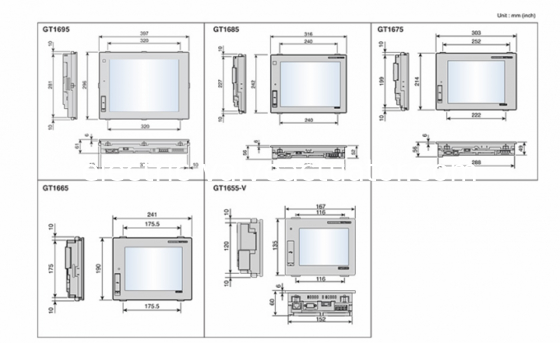

Dimensions (WxHxD) mm		241x190x52	303x214x49	316x242x52	397x296x61
Weight kg		1.7	2.1	2.7	5.0
Order information Art. no.		221949 221950 221951 221952	221945 221946 221947 221948	221360 221361	221358 221359

Accessories		Programming software, cables and interface adapters.
