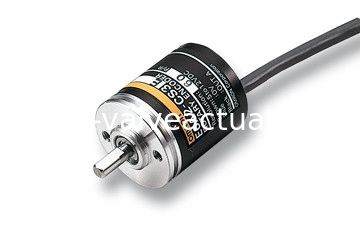

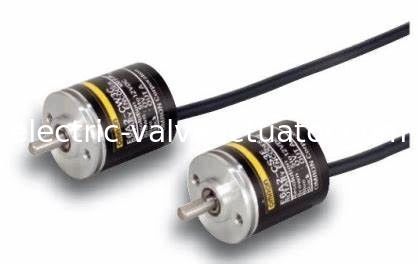

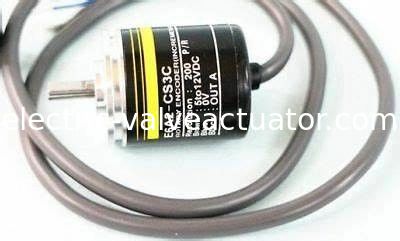

Sensing Omron servo motor encoders incremental E6A2-C 25mm Rotary Encoder with 4mm Shaft Diameter

Name: Sensing Omron servo motor encoders incremental E6A2-C 25mm Rotary Encoder with 4mm Shaft Diameter
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: E6A2-C
Price: 210.00 USD
Availability: InStock

Nombre De La Marca:	Omron
Número De Modelo:	E6A2-C
Cuota De Producción:	1
Precio:	Negotiations

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

América

Salida del cable:

Es recto.

Conexión:

Prealambrado

Función:

Ampliado

Clasificación de propiedad intelectual:

IP50

Detalles de empaquetado:

Caja nueva y original

Descripción del producto

Omron sservo motor encoders incremental E6A2-C 25mm Rotary Encoder with 4mm Shaft Diameter

Specifications:

--Small sized dia 25mm housing
--4mm Shaft Diameter

Cable exit	Straight
Connection	Pre-wired
Function	Incremental
IP rating	IP50
Max. rotation speed	5000
Shaft diameter	4

Model	E6A2-CS3C 100P/R 0.5M	E6A2-CS3C 100P/R 2M	E6A2-CS3C 10P/R 0.5M
Cable exit	Straight
Connection	Pre-wired
Function	Incremental
IP rating	IP50
Max. rotation speed	5000
Shaft diameter	4
Size (diameter)	25	25	25
Resolution (pulse/rotation)	100	100	10
Cable Length	0.5 m	2 m	0.5 m
Output form	NPN open collector	NPN open collector	NPN open collector
Power supply voltage	5-12 VDC	5-12 VDC	5-12 VDC

The E6A family of rotary encoders features a small sized dia 25mm housing.

Similar Models:

E6A2-CS3C 100P/R 0.5M	E6A2-CS5C 10P/R 2M	E6A2-CWZ5C 500P/R 0.5M
E6A2-CS3C 200P/R 2M	E6A2-CS5C 500P/R 0.5M	E6A2-CS3C 10P/R 0.5M
E6A2-CS3E 300P/R 0.5M	E6A2-CW3C 100P/R 2M	E6A2-CS3C 360P/R 2M
E6A2-CS3E 360P/R 2M	E6A2-CW3C 200P/R 0.5M	E6A2-CW3C 360P/R 2M
E6A2-CS5C 100P/R 2M	E6A2-CW3E 100P/R 0.5M	E6A2-CWZ3C 200P/R 0.5M
