Lugar de origen: | China |
Nombre de la marca: | DYLINK |
Número de modelo: | SW1801D |
Cantidad de orden mínima: | 1 sistema |
---|---|
Detalles de empaquetado: | Embalaje de la caja de madera |
Tiempo de entrega: | 15 días después de firmar el contrato |
Condiciones de pago: | T/T |
Capacidad de la fuente: | 1000sets |
Especificaciones: | SW1801D | Conexiones del ordenador: | 8 |
---|---|---|---|
Conectores del anfitrión: | hembra de 8x DVI; tipo hembra de 8x USB de B | Resoluciones máximas de Digitaces: | x 1920 1200@60Hz |
TemperatureRange de funcionamiento: | -40 ~ +55°C | fuente de alimentación: | DC12V/1A |
Dimensiones (W x H x D): | 438m m x 153m m x 44.5m m | ||
Alta luz: | Interruptor femenino de DVI KVM,Interruptor portuario de 8 DVI KVM,Interruptor de KVM del soporte de estante de DVI |

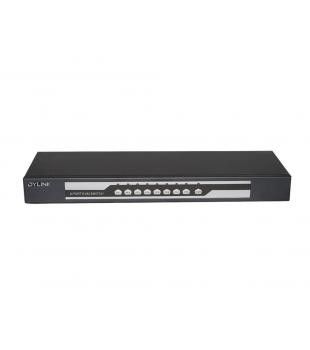

Description: The DYLINK® SW1801D 8 Port DVI KVM Switch allows quick switch between 8 computers from a single USB keyboard and mouse. The SW1801D setup is easy,simply plug the cables into their appropriate ports . There is no software to configure, no installations, and no incompatibility issues. In addition, the SW1801D allowing it to work on multiple OS platforms including:Windows, Linux, and Mac.
Features
■ Share keyboard, mouse, and DVI display between eight DVI-equipped computers
■ Full plug-and-play support with USB keyboards and mouses.
■ Supports a maximum resolution of 1920x1200@60Hz
■ Hotkey and push-button switching
■ OS independent - No driver or software required
■ Supports DDC2B for monitor detection
■ Multiplatform support :Windows, Linux and Mac
■ HP,DELL,IBM mouse and keyboard compatable
Package Includes
• 1 x DVI KVM Switcher
• 1 x Power Adapter
• 1 x User’s Manual
Specifications
Specifications | SW1801D |
Computer Connections | 8 |

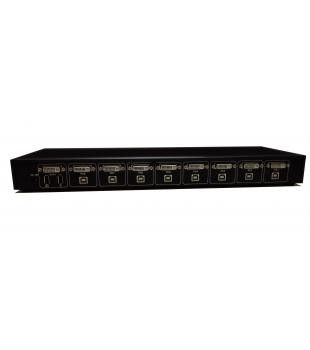

Host Connectors | 8x DVI Female;8x USB Type B female; |
Console Interfaces |
1x DVI Female; 2x USB Type A female; |
DVI Specification | V1.0 |
Maximum Digital Resolutions | 1920 x 1200@60Hz |
LED Indicators | 8 |
Port Selection | Push Button and Hotkeys |
Power Supply | DC12V/1A |
Operating TemperatureRange | -40 ~ +55°C |
Dimensions(W x H x D) | 438mm X 153mm X 44.5mm |
This product is also named as DVI Switch,or DVI KVM Switch,or DVI USB KVM Switch,and so on.
